Applications

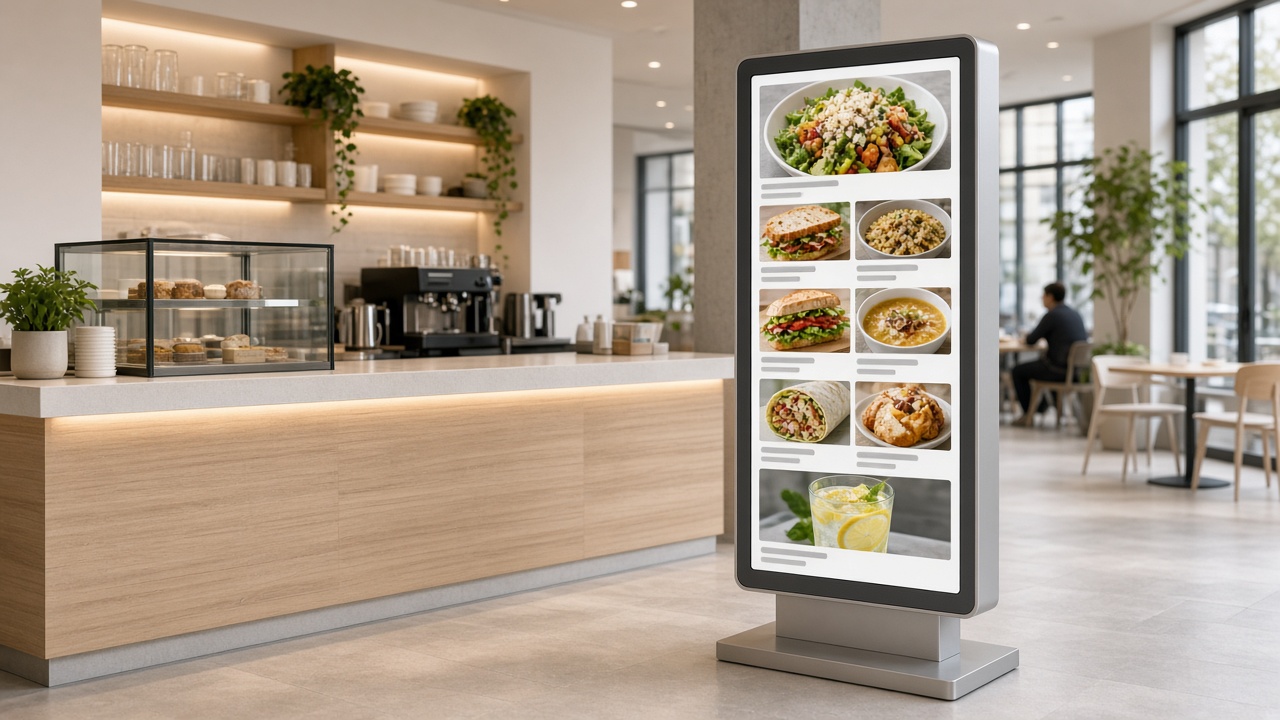

LED posters for restaurants and quick service
A restaurant or quick-service counter changes its menu and offers often. An LED poster is a portrait menu board that changes from a phone, stands without wall mounting and plays stored content on its own.
- Menu boards
- Wi-Fi update
- Acrylic option
Reading distance at the counter
Guests read menus from 1.5 to 2 m. P1.538 shows 416 × 1248 pixels on a 640 poster, P1.86 shows 344 × 1032 and P2 shows 320 × 960. Choose the finer pitch if guests stand close or if you want small text. See the pixel pitch guide.
Which type
The die-cast LED poster, 640 mm (front service, or the aluminium profile 640 with rear door) for menu boards. Where the screen is touched or wiped, such as at a self-order point, the LED poster with acrylic glass screen has glass in front; it is not a touchscreen.
Content
Update prices, specials and photos over Wi-Fi from a phone or laptop, over LAN or from USB. Wi-Fi is needed only to change content. Prepare artwork at the native pixel size: see the content formats guide.
Sound and extras
A built-in speaker is Optional, and so are casters, a flight case and a wooden crate.
Cleaning
Switch off and wipe with a soft, lint-free cloth, slightly damp with water. Avoid solvents and do not spray liquid straight onto the screen. See the care guide.
Questions and answers
Which pitch should a menu board have?
P1.86 or P2 where guests read at 2 m; P1.538 if they stand closer.
Can I change the menu myself?
Yes, over Wi-Fi from a phone or laptop, over LAN or from USB.
What if the Wi-Fi goes down?
The poster keeps playing the stored content.
Can guests touch the screen?
The acrylic glass screen is made for touches and light knocks. It is not a touchscreen.
Can the board play sound?
A built-in speaker is Optional.
Is it easy to clean?
Yes, with a soft, lint-free cloth, slightly damp with water. Switch off first.
Can I move the board for events?
The die-cast 640 stands on casters.
Can I join two boards?
Die-cast posters can be chained; the acrylic type cannot.
Request a quote
Request a quote and tell us the type, the pixel pitch, the quantity, the destination country and your control system (NovaStar with Mean Well PSU by default; Huidu or Colorlight as a lower-cost option). Price, MOQ and lead time are quoted per order. Samples are available.
