Applications
LED posters for events and trade shows
Events move often, so the poster has to travel well. Foldable, tri-fold and double-sided posters move easily, flight cases and wooden crates are Optional, and posters can join into a wall for a booth.
- Tri-fold
- Flight case Optional
- Booth walls
Types for events
The folding tri-fold LED poster opens to 1280 × 1920 mm and folds to about 640 mm wide for transport. The die-cast LED poster, 640 mm stands on casters and can be chained into a wall. The double-sided poster suits a booth where visitors pass on both sides.
Packing for the road
A flight case keeps the poster assembled, so there is no breakdown between events. Cases for 1 to 4 posters are Optional. Packed gross weight, flight case (factory data): 133 kg for one tri-fold poster, 240 kg for two in one case. For several posters a wooden crate (1 to 4 posters, Optional) is an alternative. See packaging and shipping.

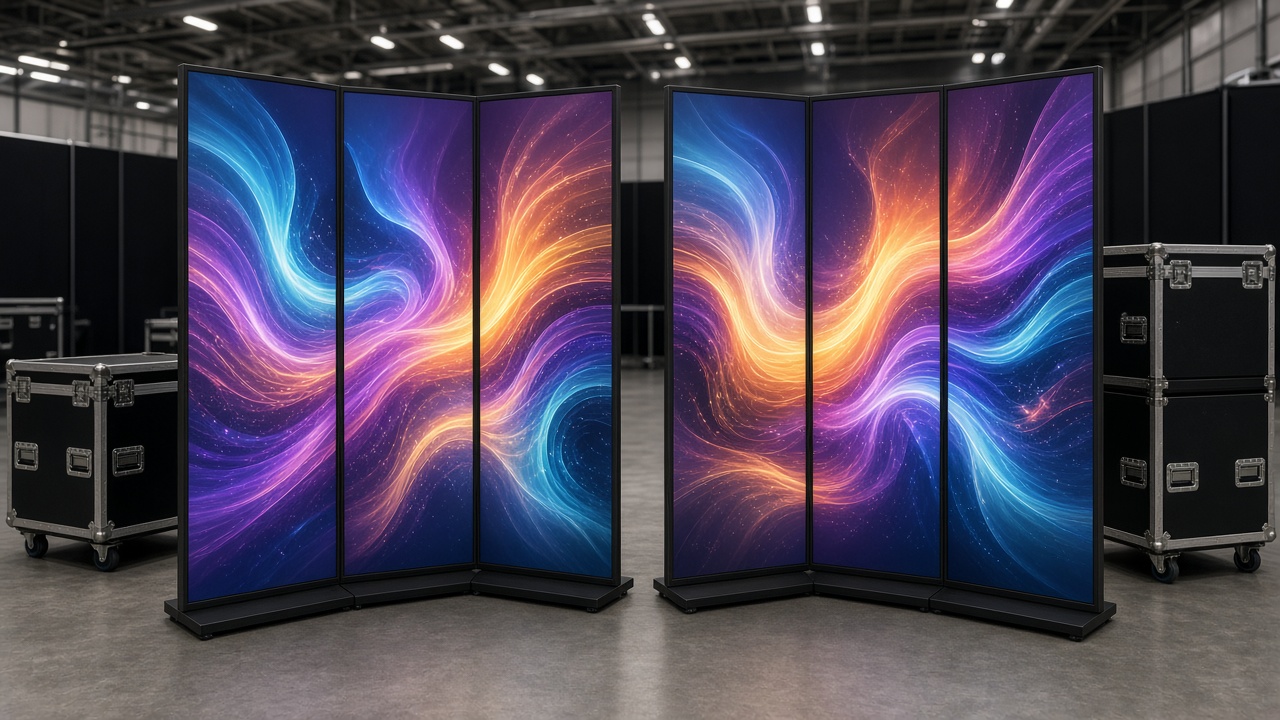

A wall for the booth
Two tri-fold posters open to 2560 × 1920 mm, three to 3840 × 1920 mm. Pitches never mix in one chain. The cascade guide explains the logic.
Pitch for a booth
Visitors stand close at a stand: P1.538 or P1.86 for 1.5 to 2 m, P2.5 for aisles. The tri-fold at P1.86 shows 688 × 1032 pixels.
Spare modules
Bring spare modules for events. Color and brightness are matched within one purchase batch.
Questions and answers
Which poster is easiest to move?
The tri-fold, which folds to about 640 mm wide, and the die-cast 640 on casters.
Do I need a flight case?
For repeated travel a flight case (Optional) is the usual choice; for one-off deliveries the standard box is enough.
How heavy is a packed tri-fold?
133 kg gross for one in a flight case, 240 kg gross for two in one case. These are packed gross weights, not the poster's own weight.
How many posters fit in a crate?
A wooden crate is available for 1 to 4 posters (Optional).
Can I build a wall for a booth?
Yes: tri-fold and die-cast posters can be chained.
Which pitch for a trade show?
P1.538 or P1.86 for visitors at 1.5 to 2 m.
Can I run content without internet at the venue?
Yes. The poster plays stored content on its own.
How long does it take to set up?
We do not publish a set-up time; it depends on cabling and the venue.
Request a quote
Request a quote and tell us the type, the pixel pitch, the quantity, the destination country and your control system (NovaStar with Mean Well PSU by default; Huidu or Colorlight as a lower-cost option). Price, MOQ and lead time are quoted per order. Samples are available.
