Indoor tri-fold LED poster 1280×1920 mm, folds to 640 mm
A wide LED poster that travels as a narrow one. Three panels (320, 640 and 320 mm) fold on hinges: open, the screen is 1280 × 1920 mm; folded, the poster is about 640 mm wide. The LEDs are GOB-coated and a stand is included. Six pitches from P1.25 to P3.076 give 416 × 624 to 1024 × 1536 pixels on the open screen, with brightness from 500 nit. Open tri-fold posters daisy-chain into a wider wall. Made for events, roadshows and showrooms, assembled at our Shenzhen assembly factory and shipped EXW / FOB Shenzhen.
- Opens to 1280 × 1920 mm
- Folds to about 640 mm
- GOB included
- Stand included
- Rear service
- Daisy chain
- P1.25 to P3.076
- From 500 nit

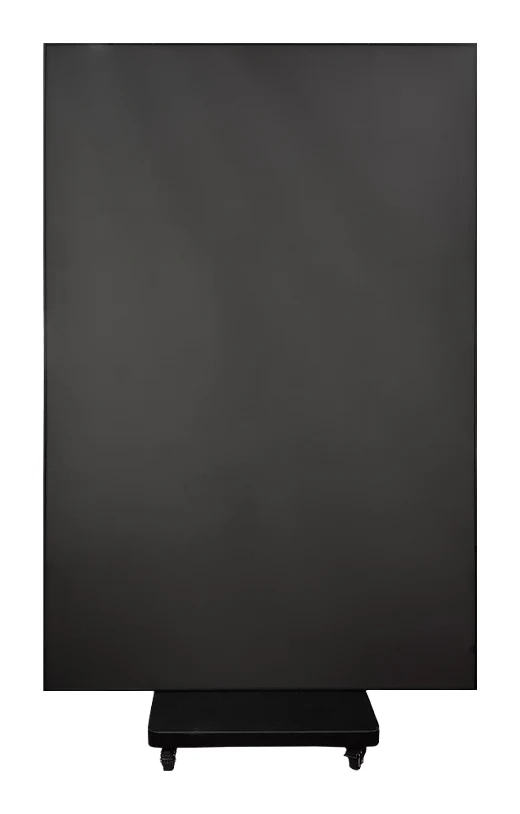

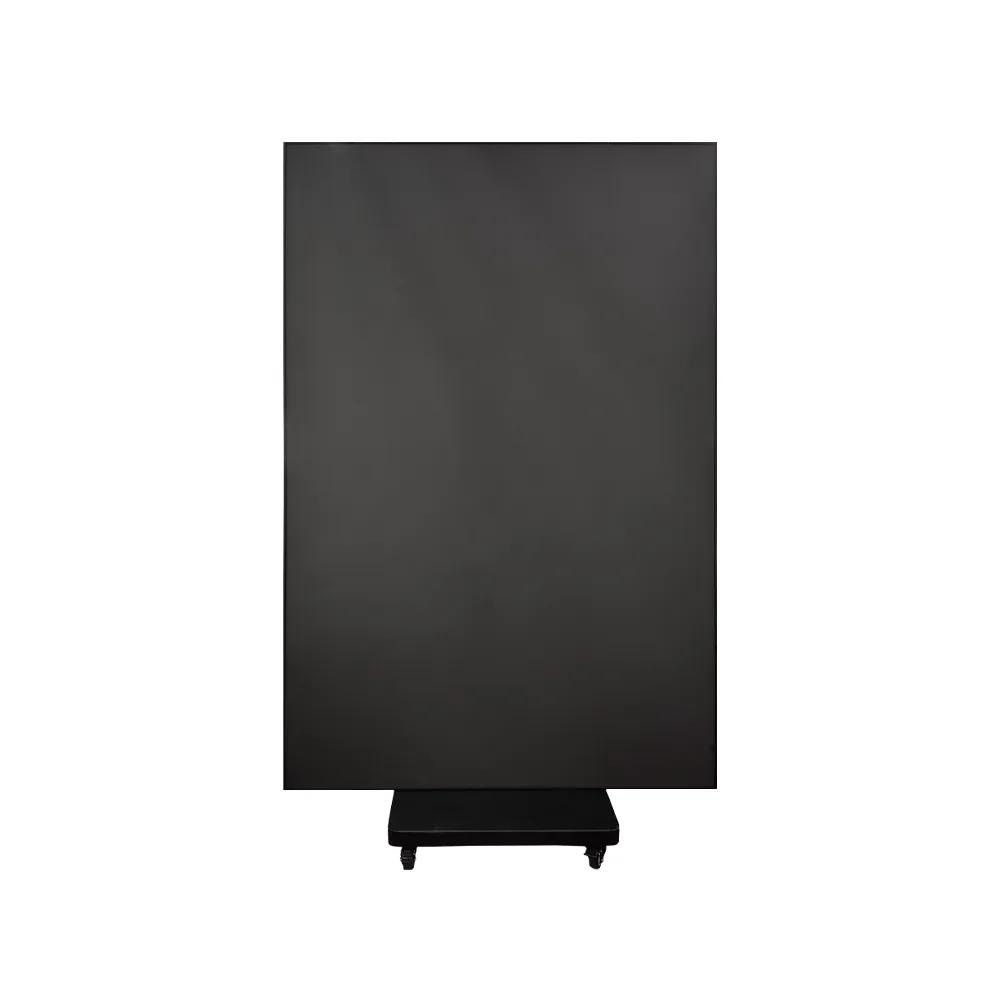

Open · 1280 mm

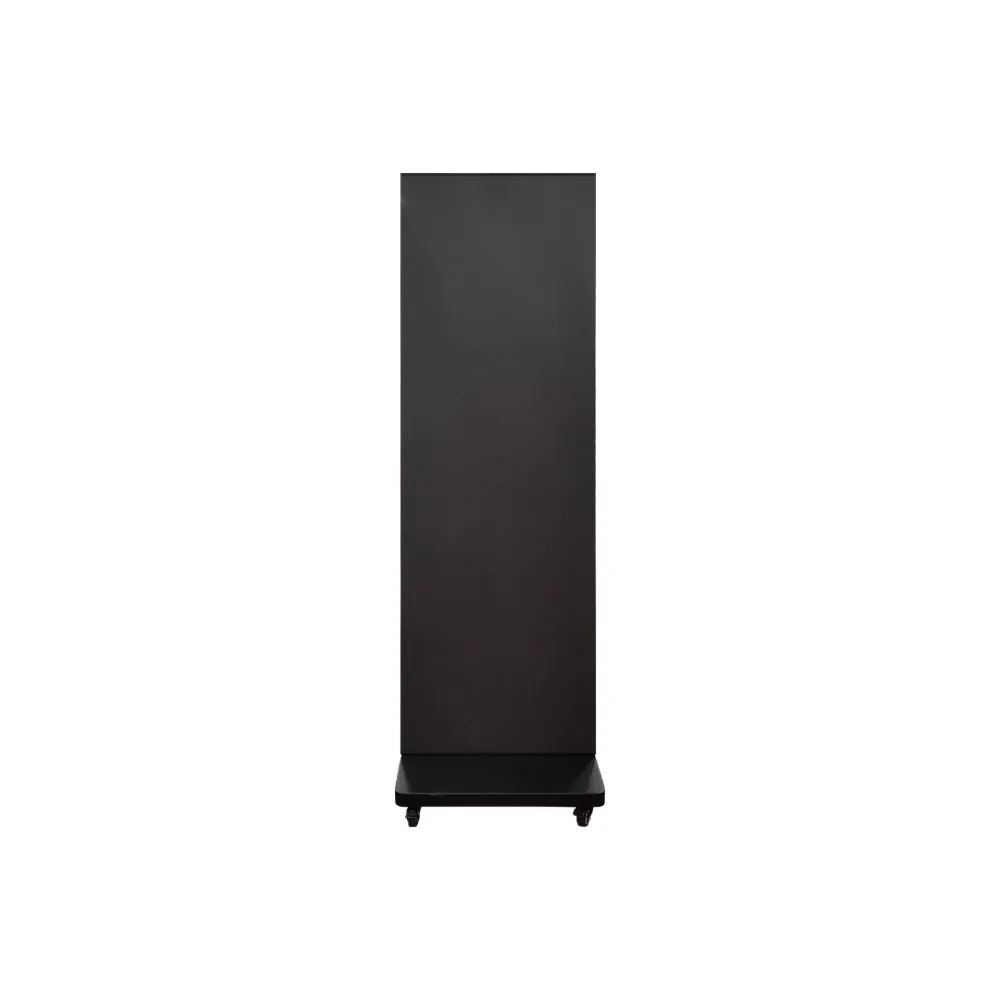

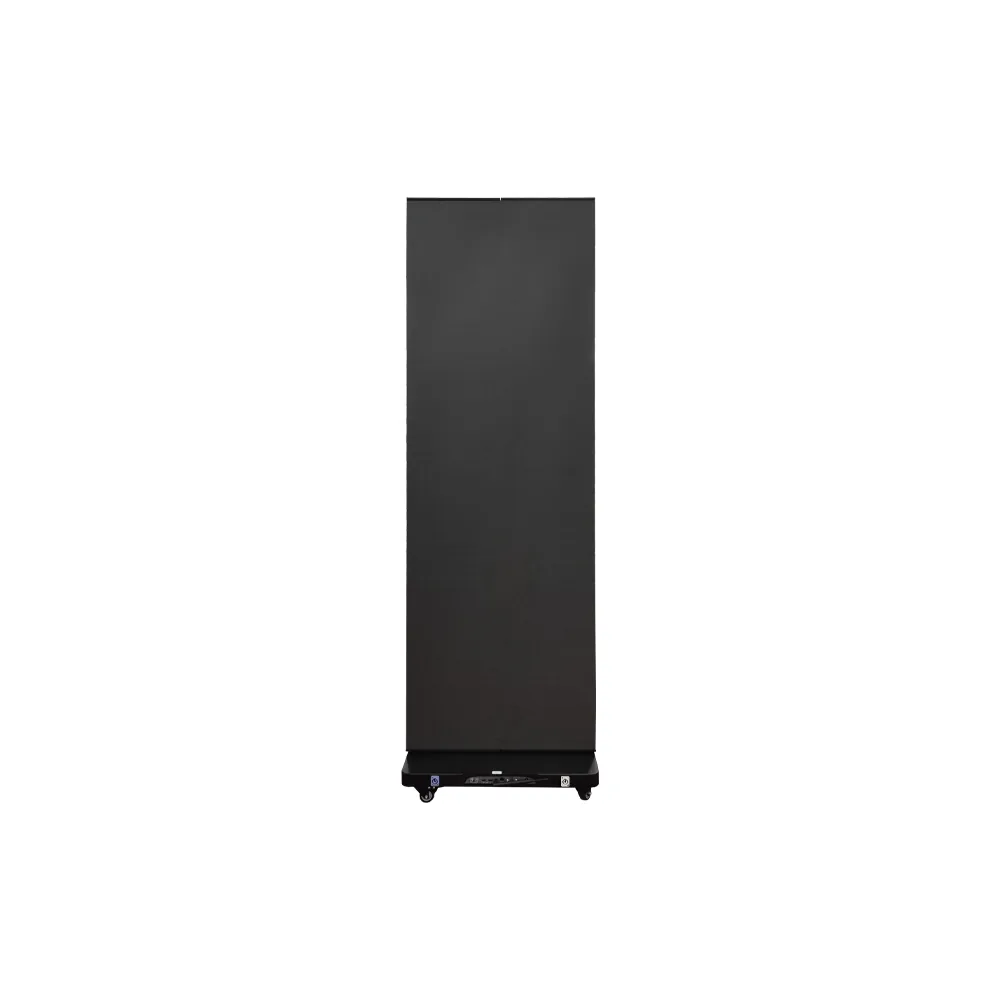

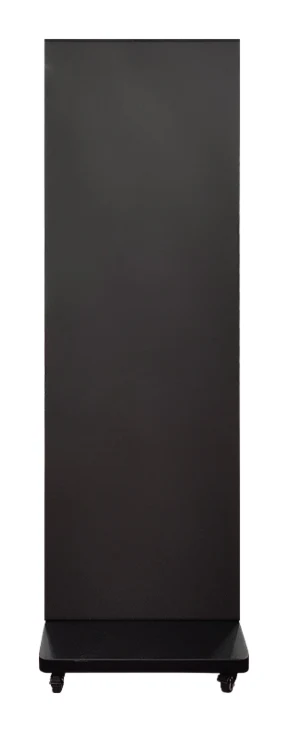

Folded · ≈640 mmKey specification
| Parameter | Value |
|---|---|
| Screen size, open | 1280 × 1920 mm (50.4 × 75.6 in), 2.46 m² |
| Folded width | about 640 mm |
| Resolution, open | 416 × 624 px (P3.076) to 1024 × 1536 px (P1.25); 512 × 768 px at P2.5 |
| Pixel pitch | P1.25, P1.538, P1.86, P2, P2.5, P3.076 |
| Brightness | From 500 nit |
| Modules | 48 modules of 320 × 160 mm (4 × 12) |
| Refresh rate | ≥3840 Hz |
| Gray scale / contrast | 14 bit / 10,000:1 |
| LED protection | GOB included |
| Power supplies | 4 × 300 W; power supply can be changed (Optional) |
| Control system | NovaStar + Mean Well PSU (default); Huidu or Colorlight (lower-cost option) |
| Daisy chain | Yes, pitches never mix in one chain |

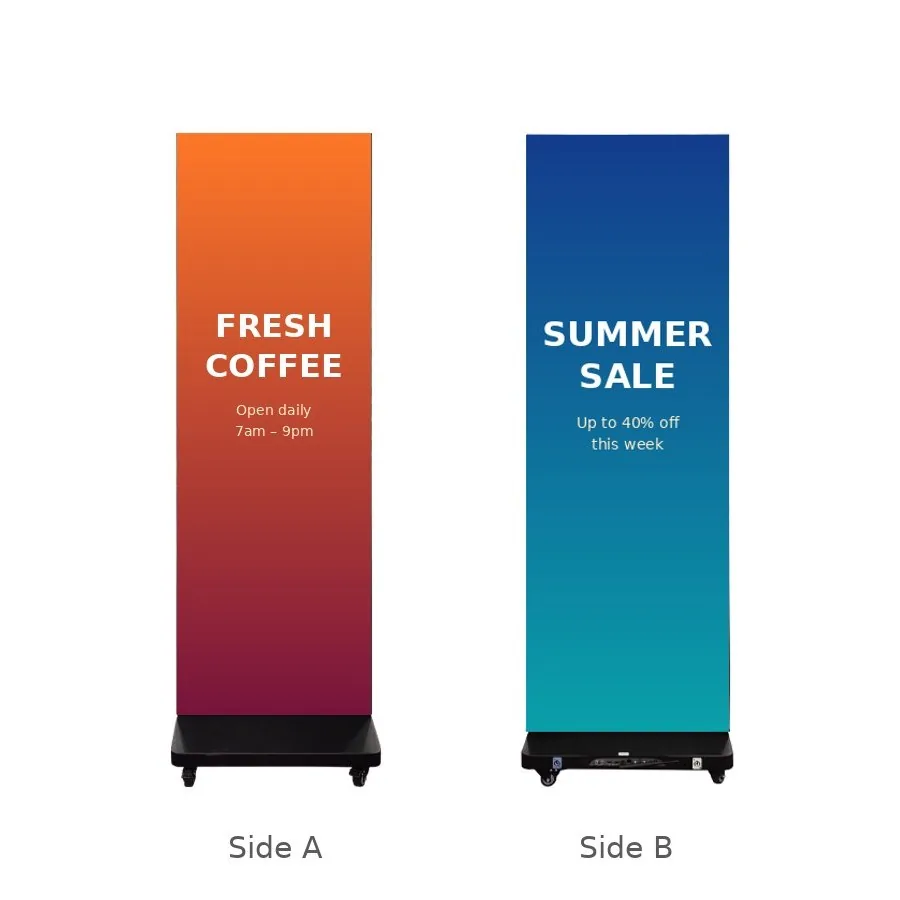

| Sides | Double-sided |
| Protection | IP3X, indoor only |
What is a tri-fold LED poster?
A tri-fold LED poster is a freestanding LED screen in three hinged panels. Open, it is a 1280 × 1920 mm portrait screen with 48 modules; folded, it is about 640 mm wide, which is the width of a standard poster. You get a wide canvas for the event and a narrow case for the road.
What is different about this cabinet
Three panels on hinges. The frame is an aluminum profile with hinges: a 640 mm center panel and two 320 mm side panels.
Folded or open. Folded, it fits a narrow position; fully open, it is a wide stage backdrop. A folding LED standee for events, in other words, built from direct-view LED panels.

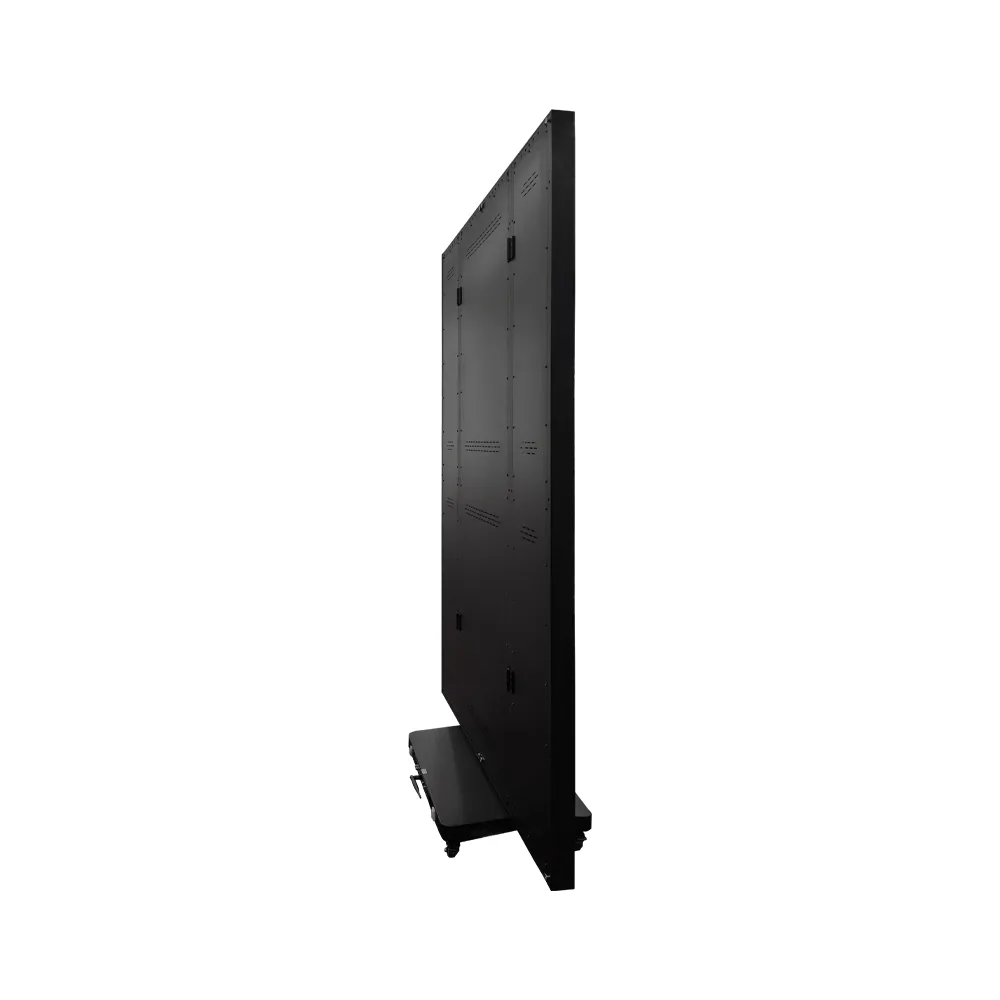

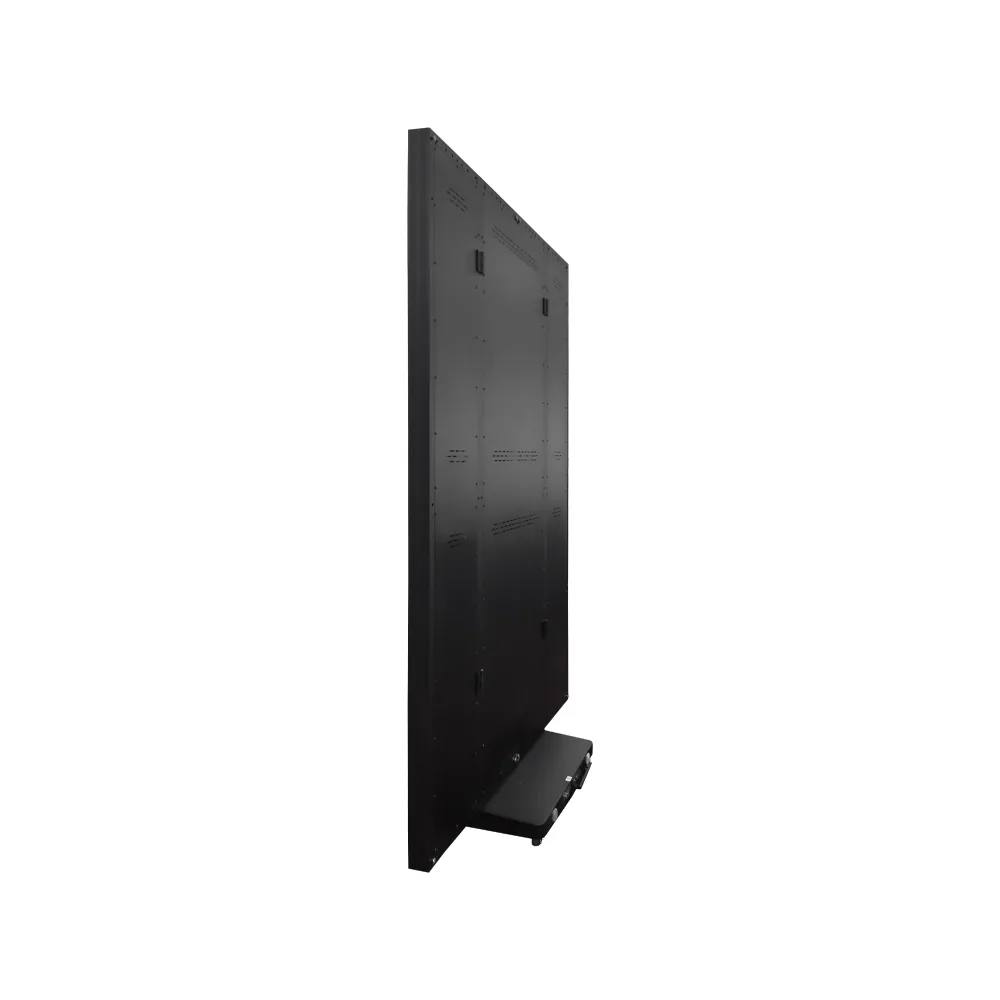

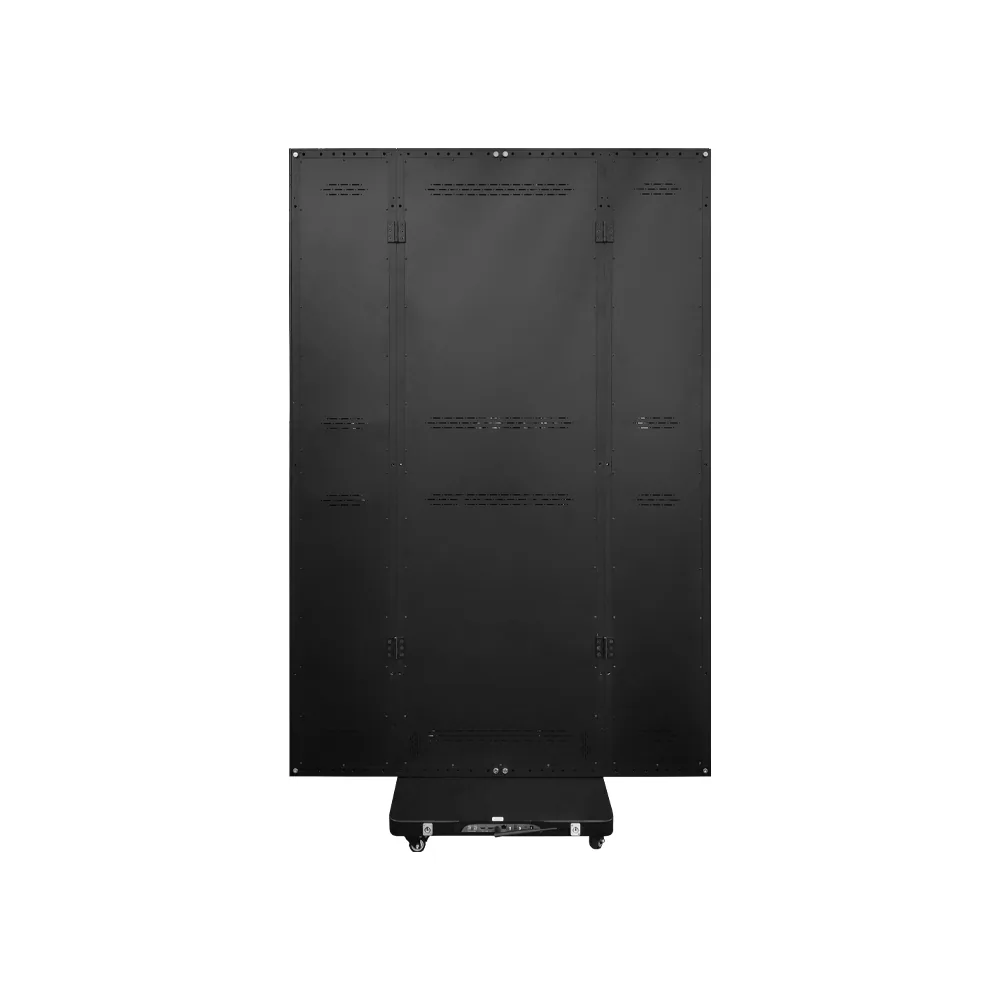

Rear service. Modules are bolted in and reached from the back, through the rear panel.
GOB included, stand included. A clear protective layer over the LEDs helps hold them in place and protects them against knocks, dust and the light moisture of normal cleaning. It is for indoor use.
Resolution and pitch: choose the picture quality
Every poster in the range has the same screen size: 640 × 1920 mm, 960 × 1920 mm or 1280 × 1920 mm. What changes with the pixel pitch is how many pixels fill that size. At P2.5 a 640 × 1920 mm poster shows 256 × 768 pixels; at P1.25 the same poster shows 512 × 1536 pixels, four times as many. More pixels give sharper text, cleaner edges and let viewers stand closer. The cabinet decides how you service and move the poster. The pitch decides how the picture looks. On the tri-fold the open screen is 1280 mm wide, so the resolution is twice the 640 figure.
| Pitch | LED | Resolution (open, 1280 × 1920 mm) | Pixels in total | Viewing distance |
|---|---|---|---|---|
| P1.25 | SMD1010 | 1024 × 1536 | 1,572,864 | from 1 m |
| P1.538 | SMD1212 | 832 × 1248 | 1,038,336 | from 1.5 m |
| P1.86 | SMD1515 | 688 × 1032 | 710,016 | from 2 m |
| P2 | SMD1515 | 640 × 960 | 614,400 | from 2 m |
| P2.5 | SMD2121 | 512 × 768 | 393,216 | from 3 m |
| P3.076 | SMD2121 | 416 × 624 | 259,584 | from 3 m |
At P2.5 the open screen is 512 × 768 pixels, at P1.25 it is 1024 × 1536. Folded, the poster is about 640 mm wide. For a stage backdrop viewed from 3 m or more P2.5 or P3.076 is enough; for a showroom with people at 1.5 to 2 m look at P1.538 or P1.86.
Where it is used
Events and roadshows. A wide backdrop that folds to a narrow case for the next venue; P2.5 (512 × 768 px) for viewers from 2.5 m.
Exhibitions and trade shows. Open it as a wide-format screen on the stand and fold it away at the end of the day.
Showrooms and launches. A wide canvas for product film, narrow when the showroom is reorganized; P1.538 or P1.86 where visitors stand close.
Conference and training rooms. Presentation backdrop and agenda board that moves between rooms.
Retail pop-ups. A temporary wide screen with no wall fixing.
Control and options
- NovaStar control + Mean Well power supplies: the default set.
- Huidu or Colorlight control: a lower-cost option.
Receiving cards and controller are matched to one brand, so name your system when you ask for a quote. Content loads over Wi-Fi, LAN or USB (4G Optional), and the poster then plays on its own, with no computer connected.
Optional: alternative LED brands; built-in speaker; 4G module; flight case; wooden crate; OEM logo, labels, packaging and documents. Power supply can be changed (Optional).
Daisy chain
Tri-fold posters daisy-chain: open, they stand side by side (some buyers call this splicing), the video signal runs from the HDMI output of one poster to the input of the next, and the control card in each poster is exchanged for a cascade card. Pitches never mix in one chain. The number of posters in one cascade is set by the total pixel count that the controller and its receiving cards can drive, so it depends on the pitch: a finer pitch puts more pixels in each poster, so fewer posters fit on one controller. We calculate it for your layout. Give us the total width you need.
| Pitch | 1 poster, 1280 × 1920 mm | 2 posters, 2560 × 1920 mm | 3 posters, 3840 × 1920 mm |
|---|---|---|---|
| P1.25 | 1024 × 1536 px | 2048 × 1536 px | 3072 × 1536 px |
| P1.538 | 832 × 1248 px | 1664 × 1248 px | 2496 × 1248 px |
| P1.86 | 688 × 1032 px | 1376 × 1032 px | 2064 × 1032 px |
| P2 | 640 × 960 px | 1280 × 960 px | 1920 × 960 px |
| P2.5 | 512 × 768 px | 1024 × 768 px | 1536 × 768 px |
| P3.076 | 416 × 624 px | 832 × 624 px | 1248 × 624 px |
One open tri-fold is 1280 × 1920 mm; two make 2560 × 1920 mm and three make 3840 × 1920 mm (landscape, 2:1). Each poster folds on its own for transport.
Packaging and shipping
The folded format suits a flight case; a flight case for the 1280 × 1920 mm poster and a wooden crate are Optional. Standard packing is a cardboard box with foam inserts (included in the base price). Packed gross weight in a flight case (factory data): 133 kg for 1 poster, 240 kg for 2 posters in one case. These are packed gross weights, not the weight of the poster itself. The packing list for your order states the weight and size of every piece. See packaging and shipping. We sell EXW / FOB Shenzhen.
Compare with the die-cast 960 cabinet
| Tri-fold (this page) | Wide die-cast LED poster, 960 mm | |
|---|---|---|
| Open screen | 1280 × 1920 mm | 960 × 1920 mm |
| Resolution at P2.5 | 512 × 768 px | 384 × 768 px |
| Frame | Hinged, folds to about 640 mm | Die-cast cabinet |
| Service | Through the rear | From the front, magnets and suction cup |
| GOB | Included | Included |
| Daisy chain | Yes; number set by total pixels | Yes |
| Stand | Included | Included |
| Pitches | 6 (P1.25 to P3.076) | 6 (P1.25 to P3.076) |
See all types in cabinet types explained.
Questions about this poster
How wide is it when folded?
About 640 mm. That is the transport width, and it is why the poster suits a flight case.
How does it differ from two 640 posters side by side?
It is one frame with hinges and one stand, so it opens and closes as a single unit, and the open screen is 1280 mm wide. Two 640 posters give two separate screens that need a chain to show one picture. The tri-fold is an indoor product (IP3X); for outdoor use see the outdoor LED poster, 640 mm.
What resolution do I get when it is open?
It depends on the pitch. P2.5 gives 512 × 768 pixels, P1.86 gives 688 × 1032, P1.25 gives 1024 × 1536. Folded, the poster is about 640 mm wide.
Can I join two tri-fold posters into one wall?
Yes. Open, they stand side by side, the control card in each poster is exchanged for a cascade card, and the HDMI signal runs from one poster to the next. Two make 2560 × 1920 mm, for example 1024 × 768 pixels at P2.5. Pitches never mix in one chain, and the number of posters in one cascade is set by the total pixel count that the controller and its receiving cards can drive, so it depends on the pitch: a finer pitch puts more pixels in each poster, so fewer posters fit on one controller. We calculate it for your layout.
How do I get content onto it?
Over Wi-Fi from a phone or laptop, over LAN or from USB; 4G is Optional. The stored content keeps playing without internet at the venue.
Can I ship it between venues often?
It is built to fold for transport. For repeated shipments a flight case (Optional) is the usual choice; bring spare modules for events.
How heavy is it packed in a flight case?
Factory data for the packed 1280 × 1920 mm poster: 133 kg gross for 1 poster in a flight case and 240 kg gross for 2 posters in one case. These are packed gross weights, not the weight of the poster itself. The packing list for your order states the weight and size of every piece.
Will my existing 640 artwork fit a 1280 × 1920 mm canvas?
The height is the same at the same pitch and the width doubles. At P2 a 640 poster is 320 × 960 pixels and the open tri-fold is 640 × 960 pixels, so artwork made for one 640 poster fills half of the open screen, and a full-width design needs the extra width.
Which pitch for a stage backdrop?
Choose by the distance of the nearest viewer: roughly the pitch in millimeters is the minimum distance in meters. For viewers 3 m or more away, P2.5 or P3.076 is enough; for a showroom with people at 1.5 to 2 m, look at P1.538 or P1.86.
Our touring countries use different plugs. Can you supply the right ones?
Yes. Tell us the country for each shipment and any local requirements, and we supply the matching power cord. We ask for these details before production so each order matches. See power plugs and voltages by country. Power supply can be changed (Optional).
Request a quote
Request a quote and tell us: the pitch, the quantity, the destination country, your control system (NovaStar with Mean Well PSU by default; Huidu or Colorlight as a lower-cost option), the total width if you want a chain, and any options (speaker, 4G, flight case, OEM). Price, MOQ and lead time are quoted per order. Samples are available. Back to all LED posters.
